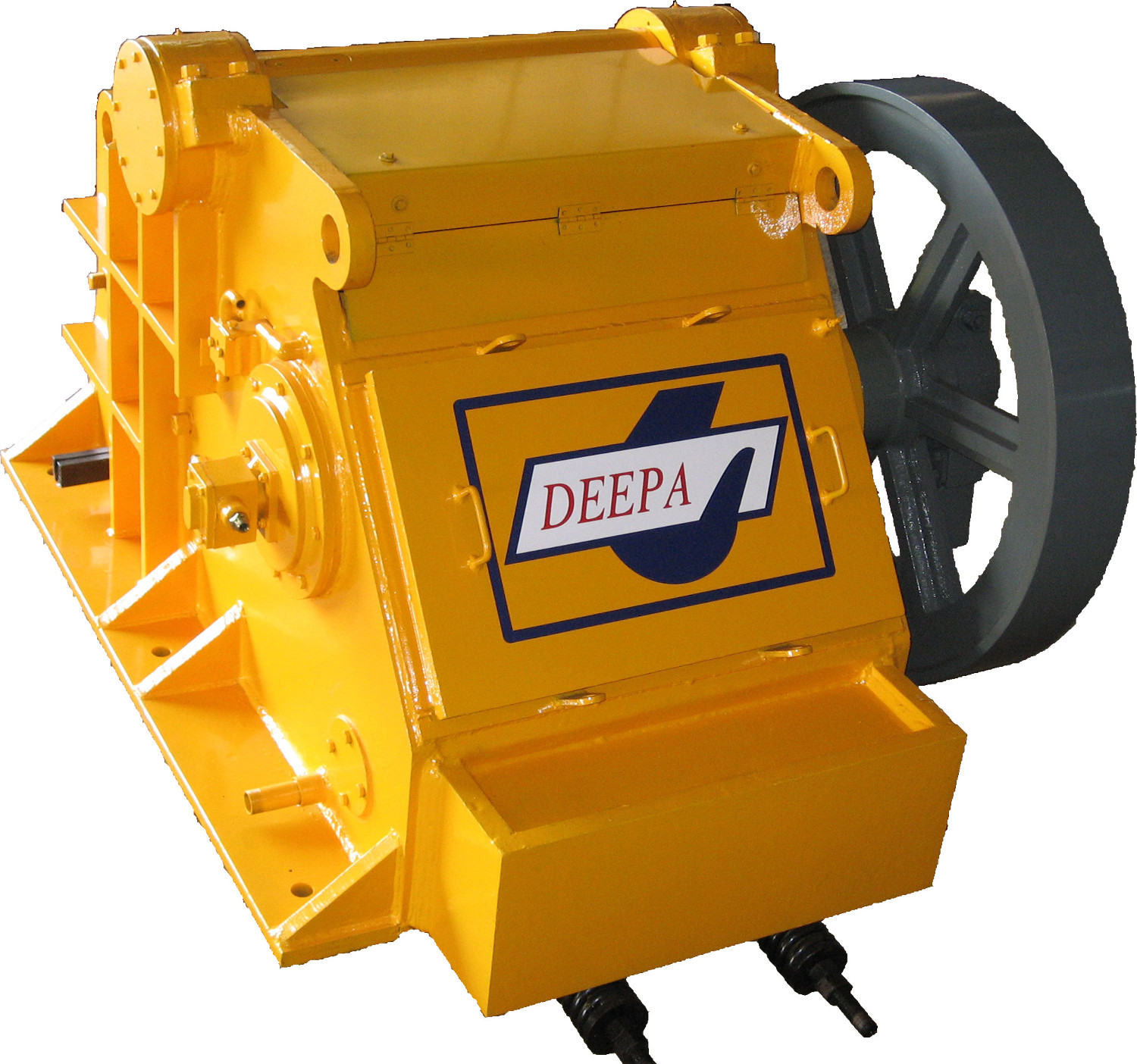

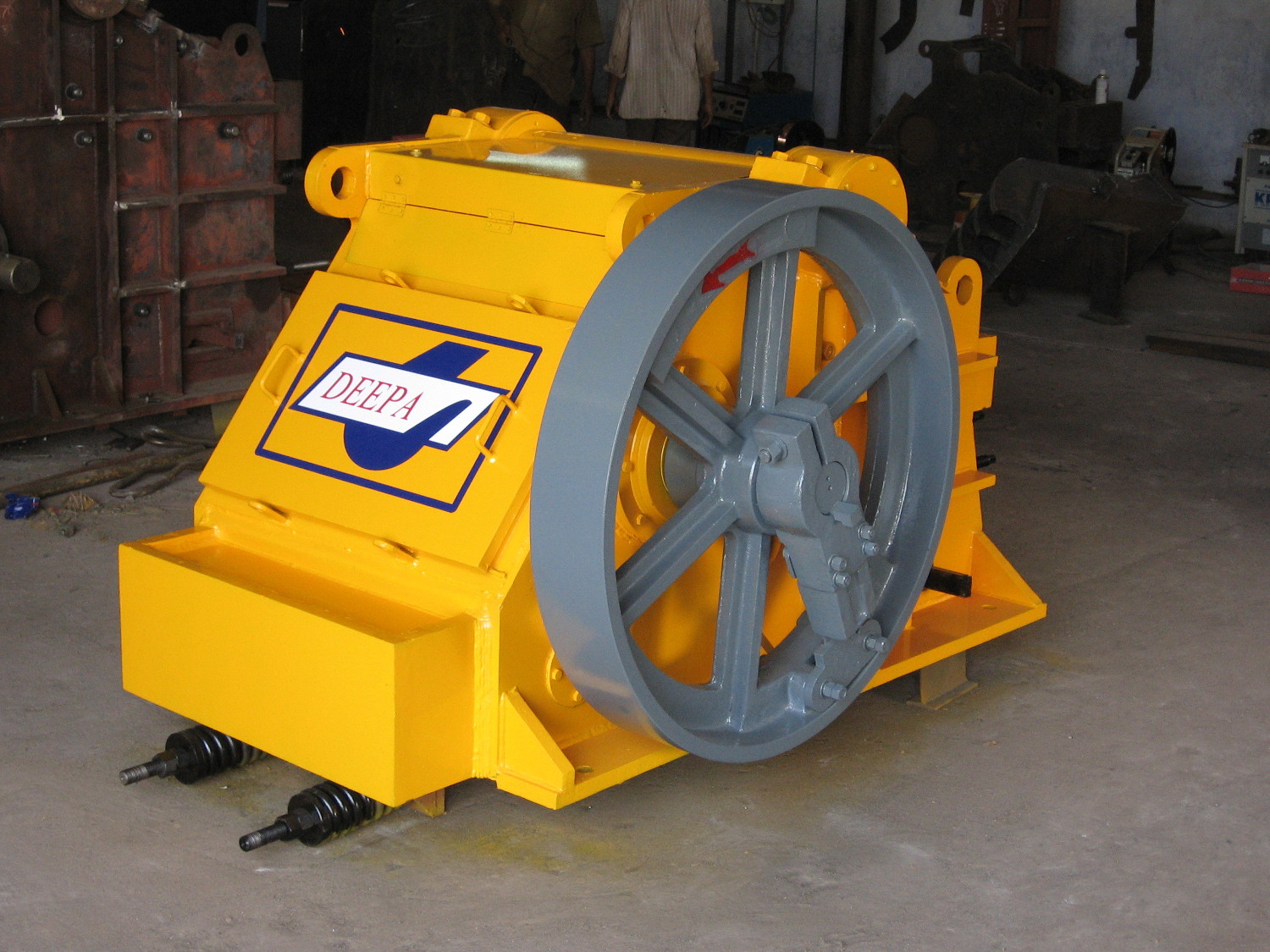

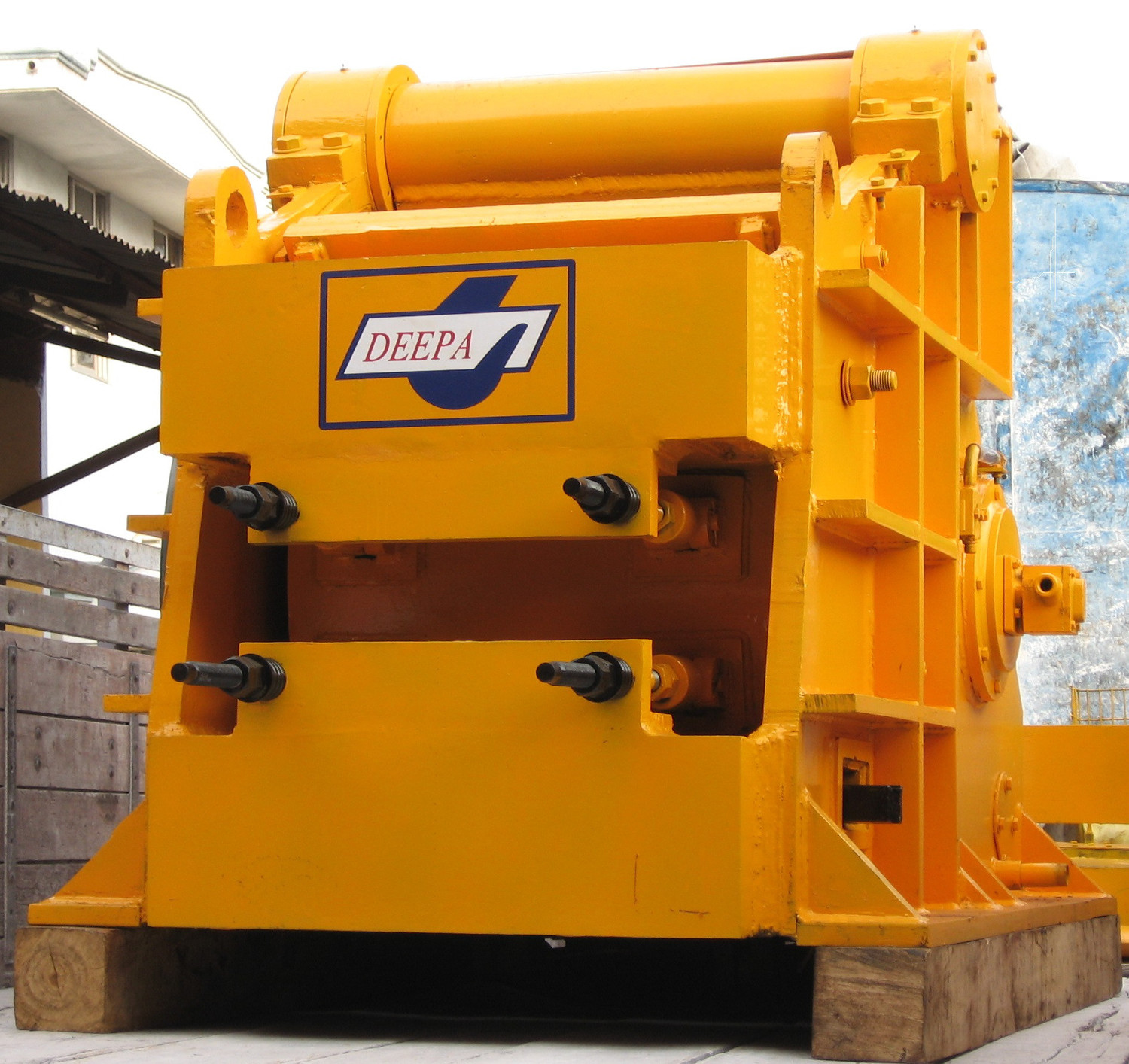

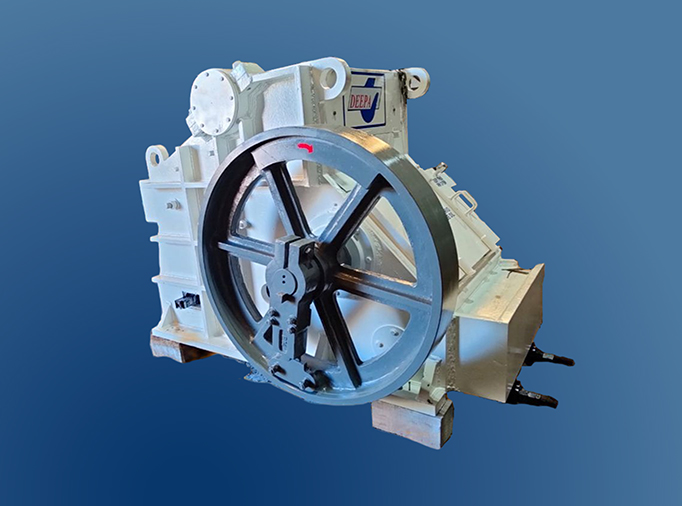

Deepa Jaw Crusher - Secondary

Deepa Secondary Crushers are extra-large with wide mouth opening to take in bigger size feed materials. The conventional theory of 1:6 reduction ratio for jaw crushers is surpassed in Deepa Secondary Crushers. Deepa Secondary crushers has very high reduction ratio of upto 1:12. The popularity and success of Deepa Secondary Crushers mainly attributed to this feature of high reduction ratio coupled with high productivity.
Deepa Secondary Crushers are of very sturdy construction weighing more than any other competitive model of same size. Body and Jaw Stock are stress relieved using modern Resonant Vibratory Stress Relief Mechanism. The Pitman, Toggle Assembly, Main bearing and Shaft are all in constant oil bath and lubricated thorough a geared pump coupled to the shaft. This positive lubrication system coupled with double toggle mechanism ensures life of bearings for years together. Since crushing is done by direct compression, the work hardening manganese steel jaw plates have a much longer life than other models of crusher.
Deepa Crushers are fitted with serrated jaw plates of multi-optional design to give designated output from 10 to 50 TPH.
Long Life of Jaw Plates, never failing bearings and high production consuming less power are the hallmarks of Deepa Jaw Crushers.

Download Sales Brochure

How crushing is done makes the deference

What distinguishes deepa single toggle crusher from others is how crushing is done in deepa single toggle crusher

A carefully designed crushing chamber profile, with accurately chosen nib angle aggressive crushing stroke enhances cruhsing and jaw life; larger and heavier forged alloy steel shaft with double row roller bearings in perfect positioning in precision machined bearing catridges with labyrinth dust seal , balanced high inertia flyweel all in unison work together to achive the rates production capacity, a capacity that surpasses all other local makes and compares competitively with ant other MNC make

Technical Specifications

  • Spec Sheet
  • Sales Sheet
Model Feed Size(mm) Crushing Capacity (TPH) Power (HP) RPM Weight
16"x10" (400x250mm) 6"(150) 10 - 12 30 325 3.25 Tons
20"x12" (500x300mm) 9"(225) 20 - 25 40 325 5.5 Tons
30"x8" (750x200mm) 4.5"(115) 24 - 28 40 325 6 Tons
30"x10" (750x250mm) 9"(225) 28 - 32 50 325 7 Tons
48"x9" (1200x225mm) 4.5"(115) 40 - 50 60 350 14 Tons
