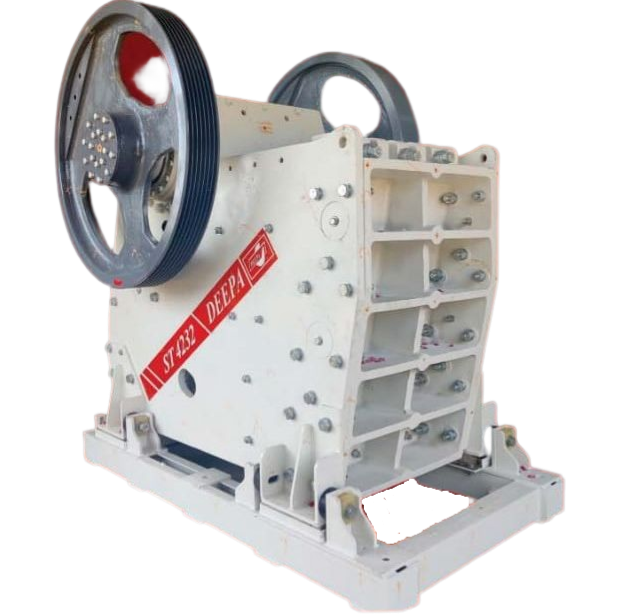

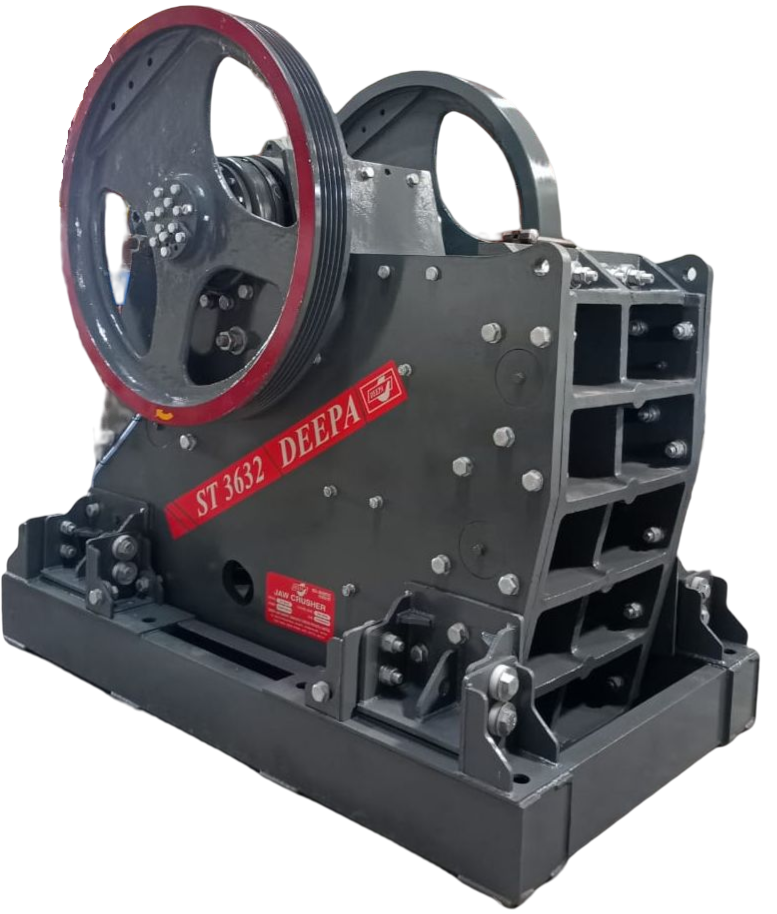

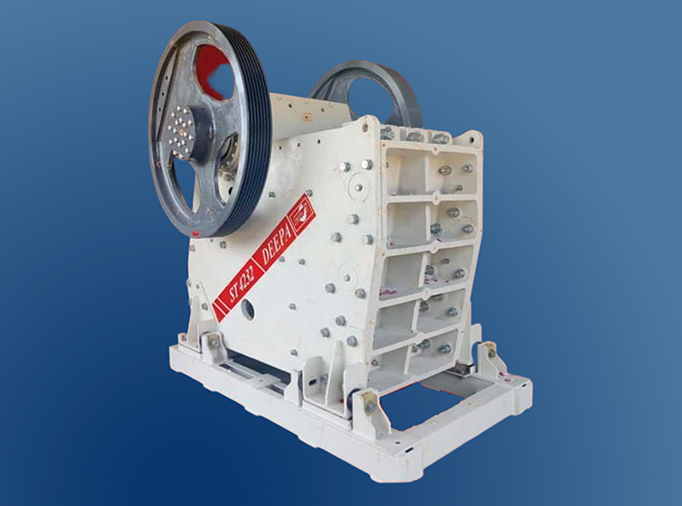

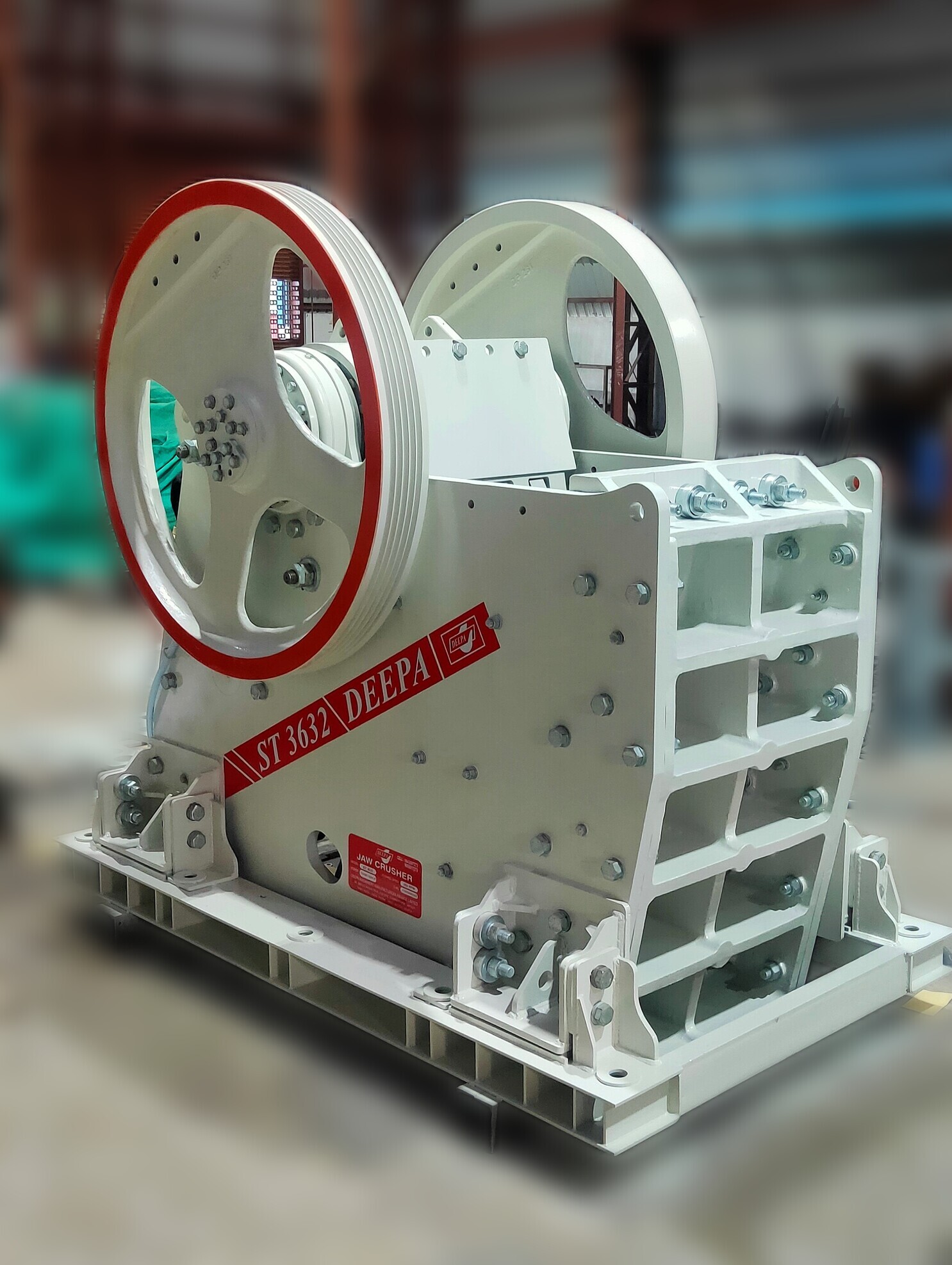

Deepa Jaw Crusher - Primary

Deepa Primary Crushers are of double-toggle oil-lubricated type, and of very robust construction with large mouth openings to allow free flow of rock boulders to be crushed into soling.
Heavy weight moving jaw with awesome powerful strokes resulting from double-toggle mechanism imparts tremendous power to crush boulders into soling at such a speed and rate to bestow Maximum Productivity at Minimal Cost.
A Geared pump with a seperate drive unit pumps the oil from the volumenous tank to Bearings and the Toggle Assembly ensuring constant positive lubrication of the system. Besides this positive lubrication, the leverage provided by double toggle mechanism and the clutch system protect the bearings and Main Shaft from sudden overloads. The work hardening High Manganese Jaw Plates have a longeivity, uncomparable with other models of Jaw Crushers. Long Life of Jaw Plates, much longer life of bearings, lower power consumption and high production mark Deepa Primary Crushers par excellence and the most economical.

Download Sales Brochure

Technical Specifications

  • Spec Sheet
  • Sales Sheet
Model Feed Size(mm) Crushing Capacity (TPH) Power (HP) RPM Weight
24"x14" (600x350mm) 12"(300) 50 - 60 50 325 6.25 Tons
30"x24" (750x600mm) 21"(550) 75 - 150 60 325 14.5 Tons
36"x30" (900x750mm) 27"(700) 100 - 200 110 300 24 Tons
48"x36" (1200x950mm) 33"(840) 150 - 300 150 300 45 Tons
