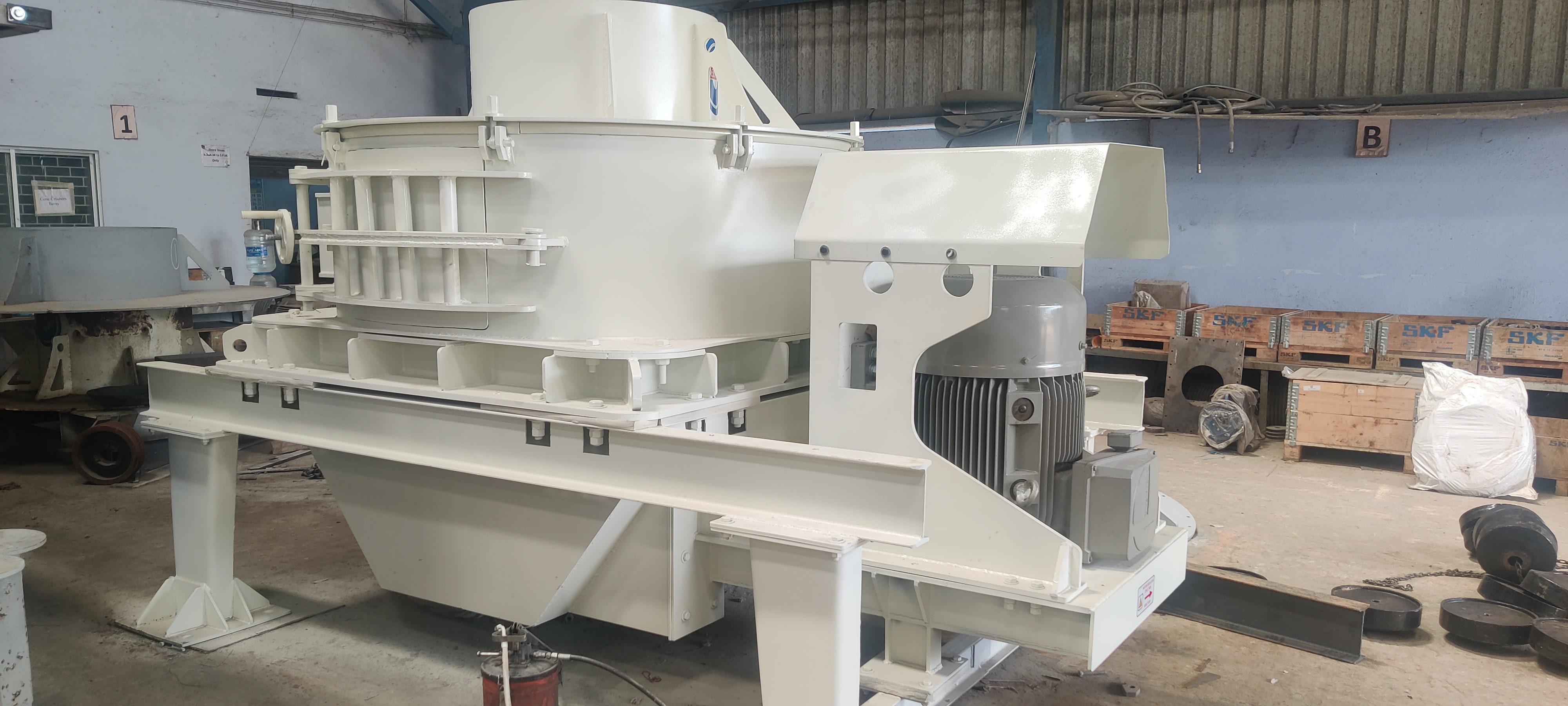

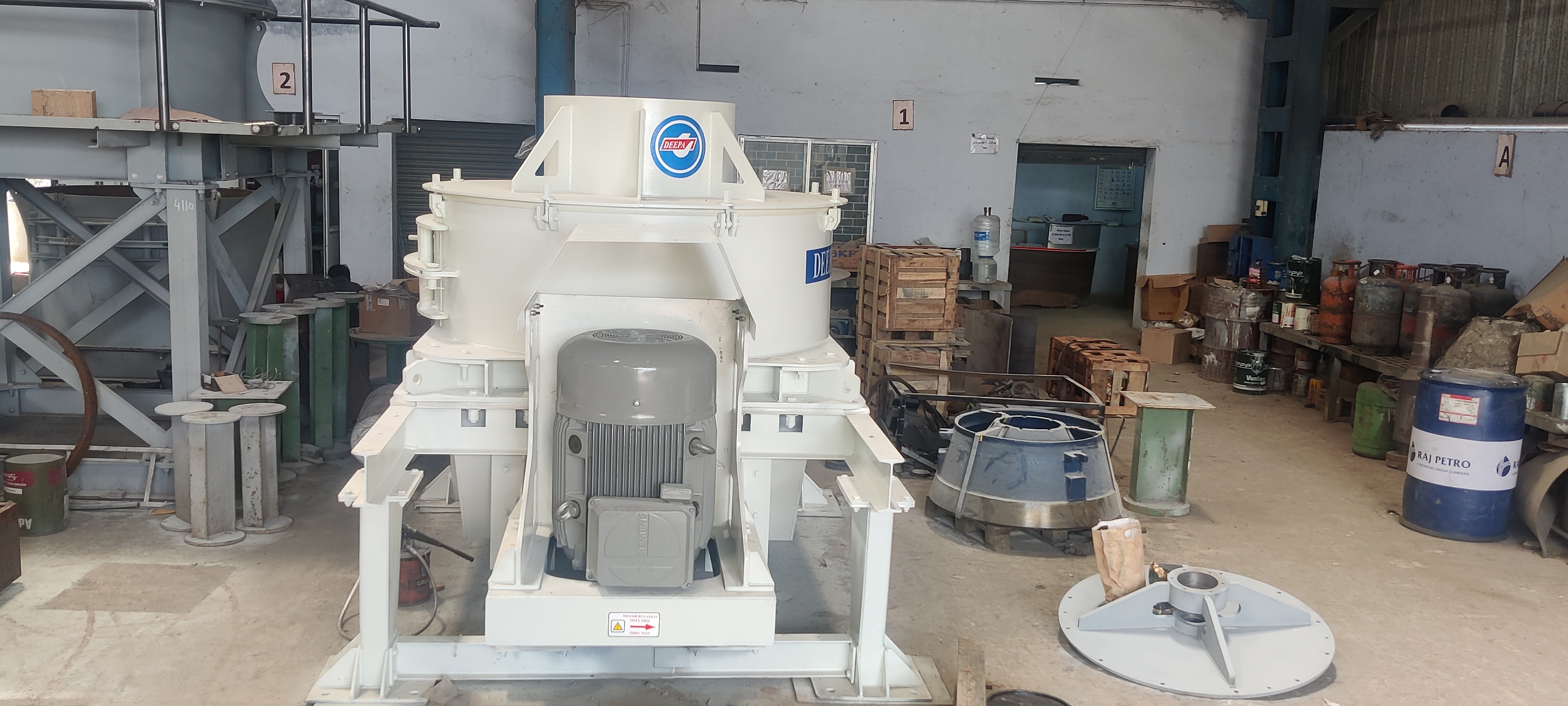

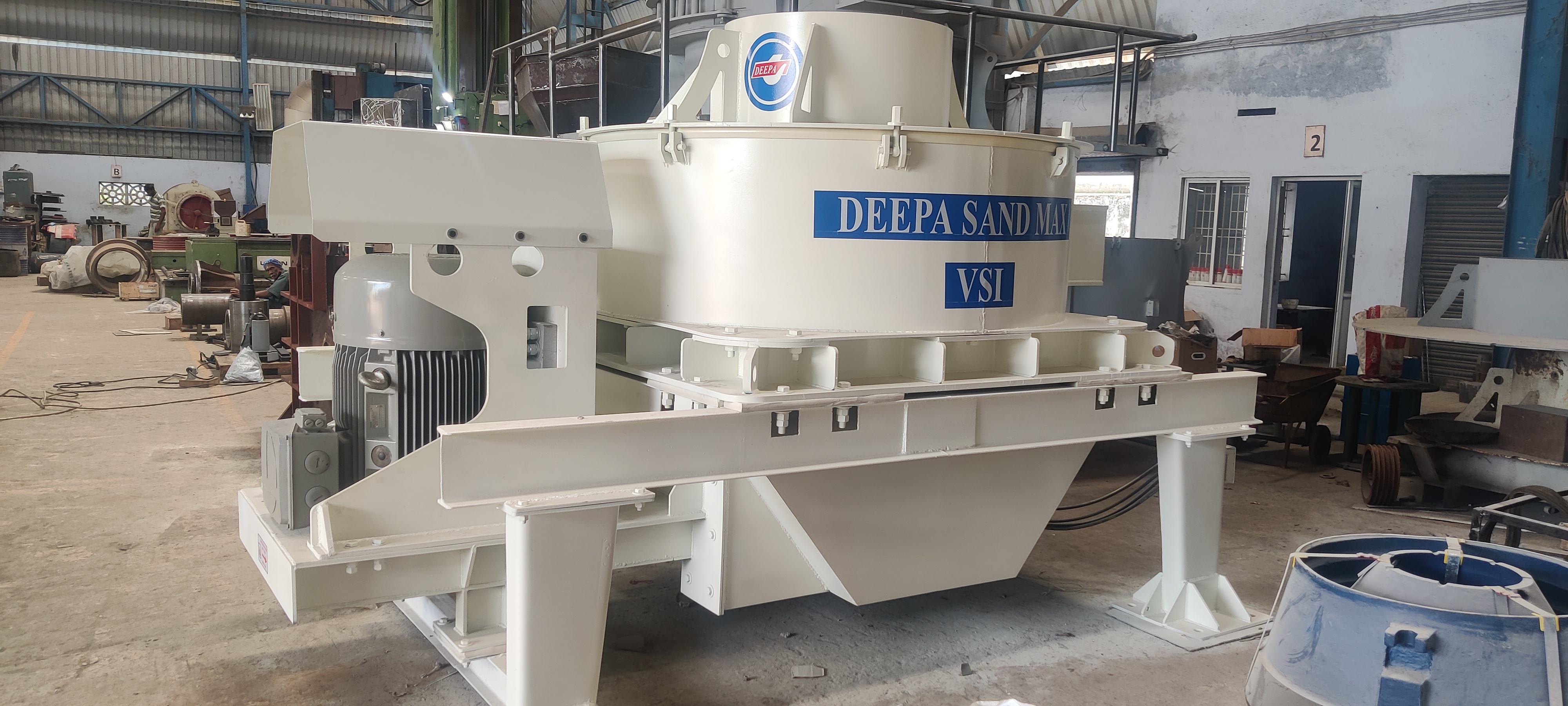

Deepa Sand Max Vertical Shaft Impactor

Deepa sand max impactors are designed to meet the Indian standard specifications and canbe fine tuned to meet the gradation levels required for each application.

Deepa sand max impactors are off robust construction, to withstand heavy loads. The Rotor assembly is very sturdy, well balanced, loaded with wear resistant liner high quality tungsten carbide tips braced on to backup plates / brackets accurately positioned to ensure longer life, higher production and vibration free performance.

Deepa VSIs are the most power efficient of all VSIs due to the unique geometry, Rotor and Rock on Steel Anvil to meet desired feed and product sizes

The drive will be from energy efficient induction motors of reputed make with foot mounts but specially designed for vertical mounting and drive transmission shall be through multi grooved taper lock pulleys

Download Sales Brochure

Technical Specifications

  • Spec Sheet
  • Sales Sheet
Machine Type Feed Size Crushing Capacity (TPH) Power (HP)
75 (-) 40mm 50 55 KW
100 (-) 40 mm 100 75 KW
150 (-) 40 mm 100 110 KW
200 (-) 40 mm 200 250 KW
300 (-) 40 mm 300 315 KW
