Cone Crusher

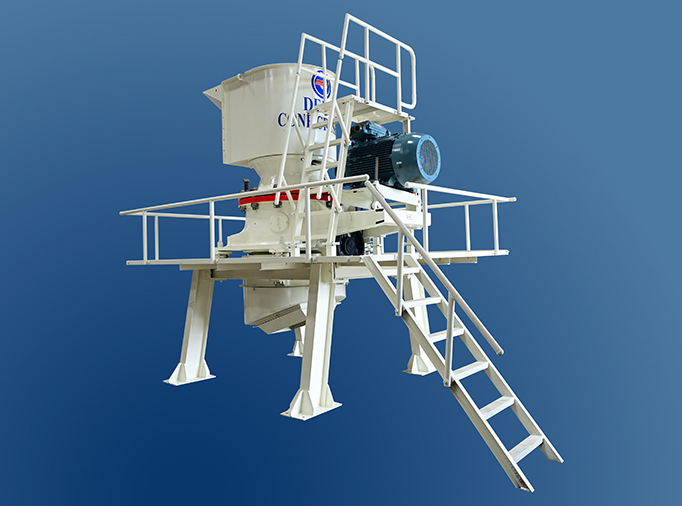

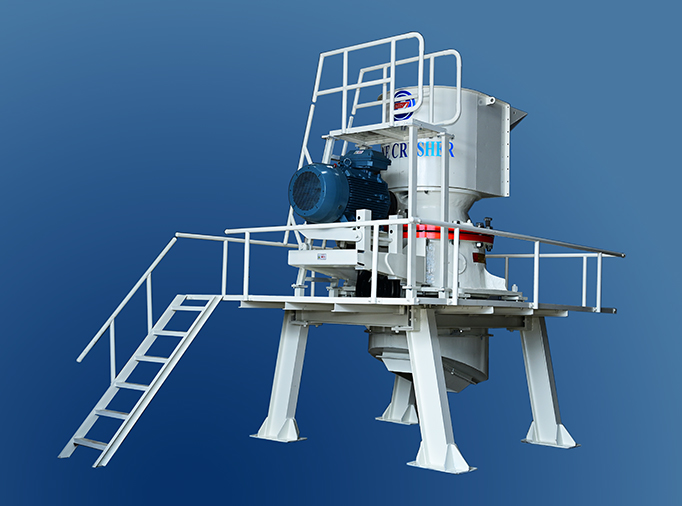

Deepa Cone Crusher is of Robust Cast Steel Body Heavy forged alloy steel shaft precision machined fitted with heavy duty roller bearings. Eccentric assembly with options to vary stroke Different cavity for different applications - fine, medium and coarse Multiple choices for CSS of mantle with speed variations Automatic lubrication of all bearings with built in protection controls Perfect dust seal Hydraulic positioning of main shaft and CSS by push button operation. All details meticulously followed to ensure quality and performance. Deepa cone performs par excellence to give Maximum Production at Minimum Cost

Download Sales Brochure






We offer Cone Crusher

  • Deepa Cone Crusher is of Robust Cast Steel Body
  • Heavy forged alloy steel shaft precision machined fitted with heavy duty roller bearings.
  • Eccentric assembly with options to vary stroke
  • Different cavity for different applications-fine, medium and coarse
  • Multiple choices for CSS of mantle with speed variations
  • Automatic lubrication of all bearings with built in protection controls
  • Perfect dust seal
  • Hydraulic positioning of main shaft and CSS by push button operation. All details meticulously followed to ensure quality and performance. Deepa cone performs par excellence to give Maximum Production at Minimum Cost
    • Learn more


Technical Specifications

  • Spec Sheet
  • Sales Sheet
NORMAL FEED OPENING(MM)
COUNTER SHAFT SPEED RANGE (RPM)
POWER INPUT (KW)
MOTION OF HEAD (MM)
APPROXIMATE THROUGHPUT IN TONNIES PER HOUR
CLOSE SIDE SETTING (MM)
08 10 12 14 16 18 20 22 25 30
65 Fine 960-1140 110
19 65 70 75 80 85
22 75 80 85 90
140 Medium 960-1140 110 19 100 110 120 125 130 140
22 130 135 145 150
25 140 145 155 160
180 Coarse 960-1140 110 19 130 135 145 150
22 140 145 155 160
25 155 165 175
